5200

Ultimate power and customization in a precision self-feeding drill.

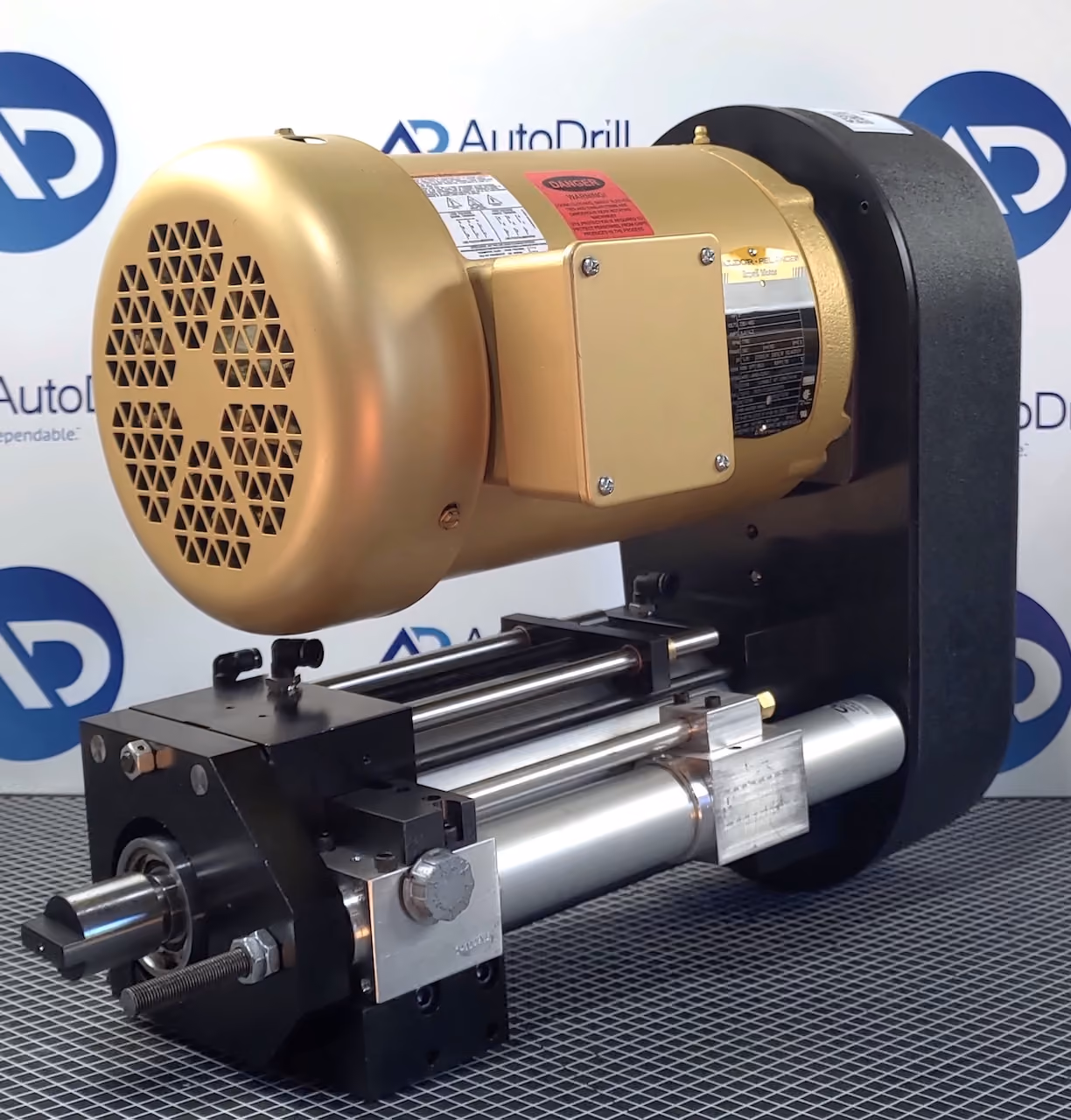

The 5200 Series AutoDrill Self-Feeder unit has all of the features of the 5100 AutoDrill series except it is specifically designed to work with our adjustable C-C or fixed multi-heads. It also offers some additional and customizable features that the 5000 and 5100 drill unit machines can not offer. These include fully adjustable SkipFeed (single or multi spindle drill head set-up), StopFeed, dual direction feed control, higher thrust feed control, electronically controllable feed control, etc.

The HydroSpeed will control the critical work penetration feed rate and breakthru process. Because the unit has a pull style feed control, we are able to control the feed rate in both the forward and retract direction if needed and configured to do so. The pull style unit also allows AutoDrill to add multiple drill spindle heads to the unit. These heads then allow you to drill many holes with a single machine.

The HydroSpeed is essentially built right on to the unit! As an added benefit, the 5200 series AutoDrill can be equipped with a fully adjustable position SkipFeed or StopFeed.

The 5200 Series AutoDrill’s features are:

  • Designed for multiple drill head applications
  • Self feeding drill capabilities
  • Spindle stroke from minimum to 6.000″ (152mm)
  • Feed control for up to the full 6.000″ (152mm) of stroke
  • Two Speed stroke control
  • Infinitely variable drill feed control
  • Cleaner hole breakthrough where less or no burr is desired
  • Self feeding reaming, deburring and countersinking / small counterbore capabilities
  • Thrust forces to 1500 lbs on shop air
  • Multiple motor drive options available to suit the application
  • Spindles speeds from less than 80 to 4,000 RPM
  • Custom configurations for close C-C drilling
  • Built-in precision depth control
  • All position mounting options
  • Key-Type Chuck (1/2″ or 3/4″ capacity)
  • Industry Standard ER Style Collet Chuck (ER16, ER20, ER25, ER32 and custom)
  • Two, three and four spindle adjustable heads
  • Two or more spindle fixed pattern heads (Single spindle off-set heads also available)
  • Custom spindles available for your special tooling
  • Electric or Air Motor drive options up to 5 HP
  • Improved counterbore and countersink finishes
  • Extended capacity with the precision feed control
  • Optional dual direction feed control, independently adjustable
  • SkipFeed (useful when drilling tube or extrusions with a “void” between the drilled walls of material)
  • StopFeed and paused feed options (useful for when you want to “dwell” in a specific location – such as when stroking a brush or sitting at the bottom of a blind hole, etc.)
  • Drill multiple holes with a single machine using multi prong drills and tools

Whether this unit helps you make more product in the same amount of time (cost savings) or simply helps you to keep up with high volume requests (higher production), the 5200 series self-feed unit is an excellent choice.

Some of the many uses for the 5200 AutoDrill series are:

  • Plate and structural steel hole drilling operations
  • Pipe drilling
  • Drilling multiple holes with a single unit
  • Flow Drilling or Form Drilling of holes
  • High thrust applications (up to 1500 lbs. on standard shop air)
  • Deep hole operations up to 6.000″ (152mm)
  • Depth controlled drilling applications
  • Operations requiring all position mounting
  • Operations requiring through the spindle coolant
  • Morse Taper tooling requirements
  • Available with air motor drives for explosion-proof operations using inert gas
  • Make many holes with a single machine
